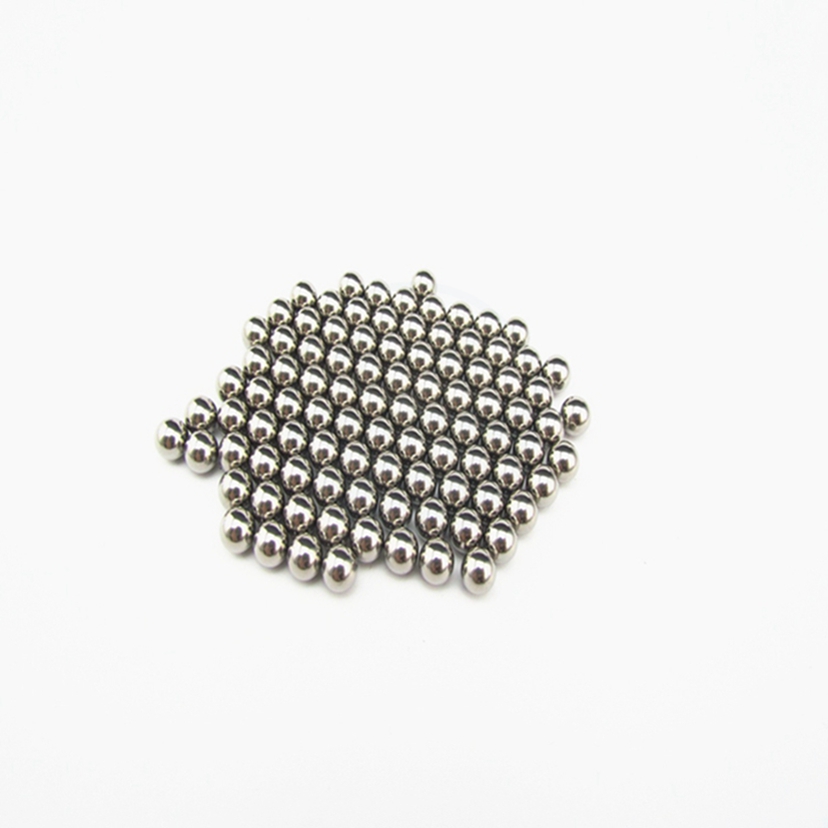

CHROME STEEL BALL
Chrome steel balls are uniformly hardened and tempered throughout their entire diameter to achieve maximum strength and quality. Ball hardness is controlled within the 60-66 HRC range as measured on parallel flat surfaces.
| Chrome steel ball/bearing steel ball | ||||||||||
| 1. Material | AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505 | |||||||||
| 2. Size Range | 0.6mm-180mm | |||||||||
| 3. Grade | G10-1000 | |||||||||
| 4. Hardness | 58-65 HRC | |||||||||
| 5. Characteristic | (a)Mainly used in bearings (b)Good hardness (c)Good resistance to deformation with excellent wear resistance (d)Low corrosion | |||||||||
| 6. Magnetic | Yes | |||||||||
| 7. Application | Ball bearings, bicycles, automobile industry | |||||||||
| 8. Chemical composition | ||||||||||
| C% | Si% | Mn% | S% | P% | Cr% | Mo% | Cu% | Al% | O% | |
| min. | 0.93 | 0.15 | 0.25 | --- | --- | 1.35 | --- | --- | --- | --- |
| max. | 1.05 | 0.35 | 0.45 | 0.015 | 0.025 | 1.65 | 0.1 | 0.3 | 0.05 | 0.0015 |
| 9.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
| 10.Conditioning | dry or oiled | |||||||||
| 11.Delivery time | Stock within a short time or 35 days. | |||||||||
| CHANGZHOU HUARI STEEL BALL CO., LTD. | ||||||||||
APPLICATION OF BEARING STEEL BALLS
Bearing steel balls are widely used. The main applications are: as rolling elements of bearings, bicycles, car seat slides, CV joints, grinding media, universal wheels, etc.
MORE STEEL BALLS
Steel Balls Stainless Steel Balls/ Chrome Steel Balls/ Carbon Steel Balls/ Tool Steel Balls
Metal Alloy Balls Aluminum Balls/ Brass Balls/ Copper Balls/ Tungsten Carbide Balls
Plastic Balls PP Balls/ POM Balls
Torlon Balls
Ceramic Balls
Special Balls Coated Balls/ Rubber Coated Balls/ Flying Saucer Balls/ Solid Half Balls
PACKING
↓↓↓ Please see the PDF below for more chrome steel ball parameters. ↓↓↓
