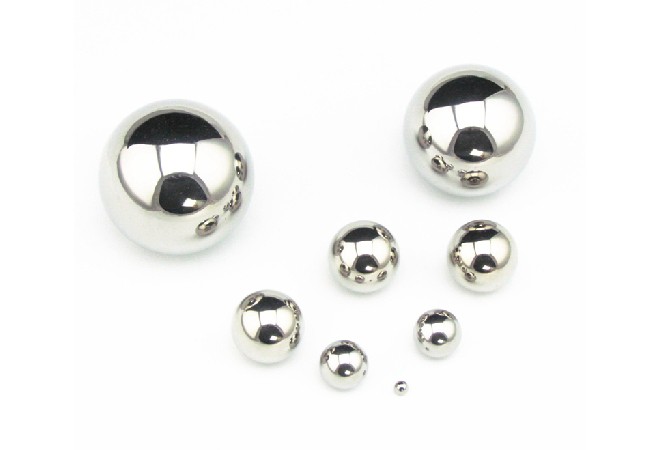

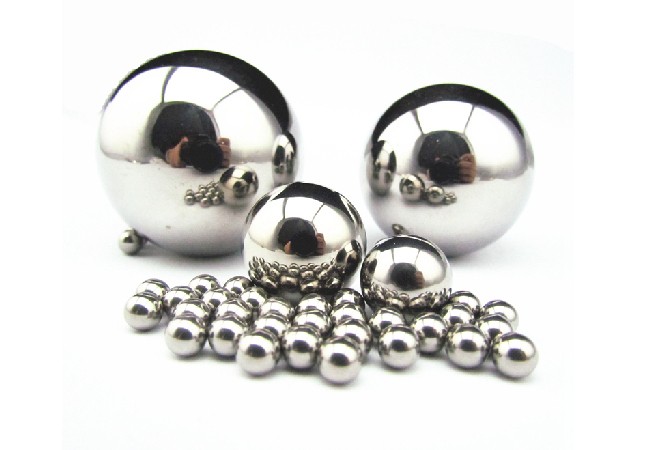

316 STAINLESS STEEL BALLS
This is only austenitic steel for ball manufacture and can be non magnetic.
316L stainless steel ball has a lower carbon content than 316 stainless, which gives it even higher corrosion resistance than the excellent resistance of type 316. Applications for type 316L balls include Jewelry and medical uses.
| Stainless steel ball AISI 316 | |||||||||
| 1. Material | AISI 316/ JIS SUS 316/ Wks 1.4401 | ||||||||
| 2. Size Range | 1mm-180mm | ||||||||
| 3. Grade | G50-1000 | ||||||||
| 4. Hardness | 25-39 HRC | ||||||||
| 5. Characteristic | (a)Excellent resistance to corrosion(apart of chloridric acids) (b)Not hardenable austenitic inox | ||||||||
| 6. Magnetic | NO | ||||||||
| 7. Application | Photographic chemicals, bleaches, dyes, inks and nitric aicds Vggressive applications without mechanical efforts | ||||||||
| 8. Chemical composition | |||||||||
| C% | Si% | Mn% | Cr% | Ni% | Mo% | P% | S% | N% | |
| min. | --- | --- | --- | 16.5 | 10.0 | 2.0 | --- | --- | --- |
| max. | 0.07 | 1.00 | 2.00 | 18.5 | 13.0 | 2.5 | 0.045 | 0.015 | 0.11 |
| 9.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | ||||||||
| 10.Conditioning | dry or oiled | ||||||||
| 11.Delivery time | Stock within a short time or 35 days. | ||||||||
| CHANGZHOU HUARI STEEL BALL CO., LTD. | |||||||||
MORE STAINLESS STEEL BALLS
Stainless steel balls: AISI304, 304L, 316, 316L (G100-G1000), AISI420, 420C, 440, 440C (G10-G1000) .
AISI304, 304L, 316, 316L: strong anti-rust performance, can be in direct contact with neutral liquids. Special Bearings, water pumps, valves, aerosols, dispensers, food machinery, medical, cosmetics and other fields.
AISI420, 420C, 440, 440C: precision bearings, auto parts, bicycles, mixers, slide rails, conveyor belts, skateboards, casters, valves, etc.
MORE STEEL BALLS
Steel Balls Stainless Steel Balls/ Chrome Steel Balls/ Carbon Steel Balls/ Tool Steel Balls
Metal Alloy Balls Aluminum Balls/ Brass Balls/ Copper Balls/ Tungsten Carbide Balls
Plastic Balls PP Balls/ POM Balls
Torlon Balls
Ceramic Balls
Special Balls Coated Balls/ Rubber Coated Balls/ Flying Saucer Balls/ Solid Half Balls
PACKING
↓↓↓ Please see the PDF below for more stainless steel ball parameters. ↓↓↓
Stainless steel ball Detailed parameter table.pdf
