Carbon Steel Ball

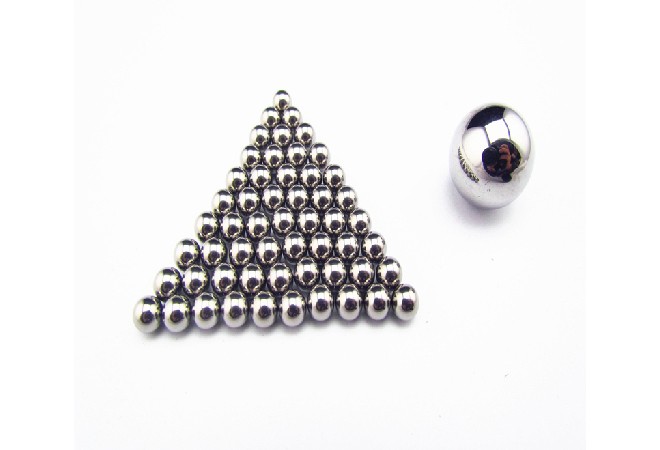

Carbon steel bearing balls
  • International Equivalent:
  • AISI1010/ AISI1015/ C15/ 1.0413/ JIS SWRM 12/ EN32 ASTM A/29 AISI1086/ C85/ 1.0616/ EN8-9/ Wks 1.1269
  •  To Share:
  • inquiry
    • Carbon steel bearing balls
    • Carbon steel bearing balls
    • Carbon steel bearing balls
    • Carbon steel bearing balls
    • Carbon steel bearing balls
    • Carbon steel bearing balls
Product information:

Low carbon steel balls are often referred to as carbon steel balls made of AISI1010-1015. They can be casehardened with low core hardness. They are widely used in automotive applications, semi-precision bearings, and commercial applications such as casters, locks, and drawer slides. Other applications for low carbon steel balls include locks, bicycles, roller skates, slides, trolleys, and conveyors.

Low Carbon Steel Balls
1. MaterialAISI1010/ AISI1015/ C15/ 1.0413/ JIS SWRM 12/ EN32 ASTM A/29
2. Size Range1mm-180mm
3. GradeG40-1000
4. Hardness60 min. HRC (Surface-hardend)
5. Characteristic(a)Casehardened surface balls and low hardness core
(b)superficial hardness
(c)Low resistance to corrosive attack
6. MagneticYes
7. ApplicationLow quality bearing, oiler, roller, sliding block…
8. Chemical composition
C%Si%Mn%Cr%Ni%Mo%P%S%Al%O%
min.0.12---0.30------------------
max.0.170.300.600.200.250.050.0350.0350.010.30
9.PackingStandard: 10kg or 20kg per carton,1 ton per pallet or as customer required
10.Conditioningdry or oiled
11.Delivery timeStock within a short time or 35 days.

ITAUSAGERFRAUKRUSCHNJAP
C1010101.1121CC10040A101010S10C
C1510151.1141XC12080M151515S15C

Grade: G10 to G1000
Gradeball diametersphericalsurfacelot diameternomainal ball
variationdeviationroughnessvariationdeviation tolerance
VdwsSphRaVdwlTdn
not over
μm
100.250.250.020.5*
160.40.40.0250.8*
200.50.50.0321*
240.60.60.041.2*
280.70.70.051.4*
40110.062*
601.51.50.083*
1002.52.50.15±12.5
200550.1510±25
50012.512.5*25±50
10002525*50±125

Standard Packing
More packing methods, please contact us.
More packing methods, please contact us.
Standard packing:
