Stainless Steel Ball

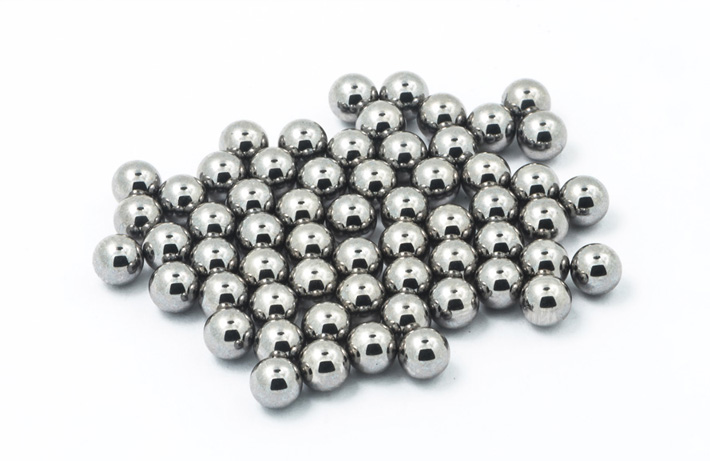

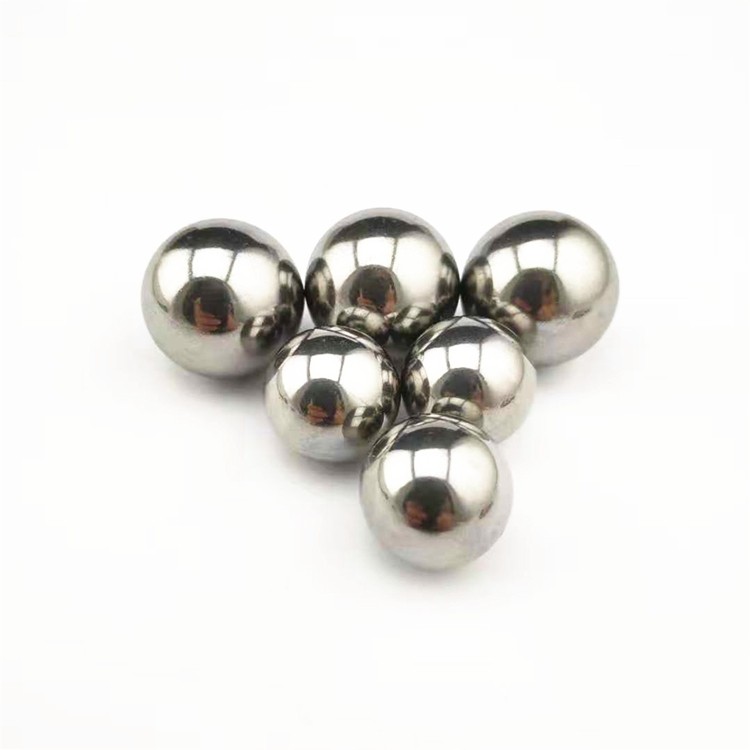

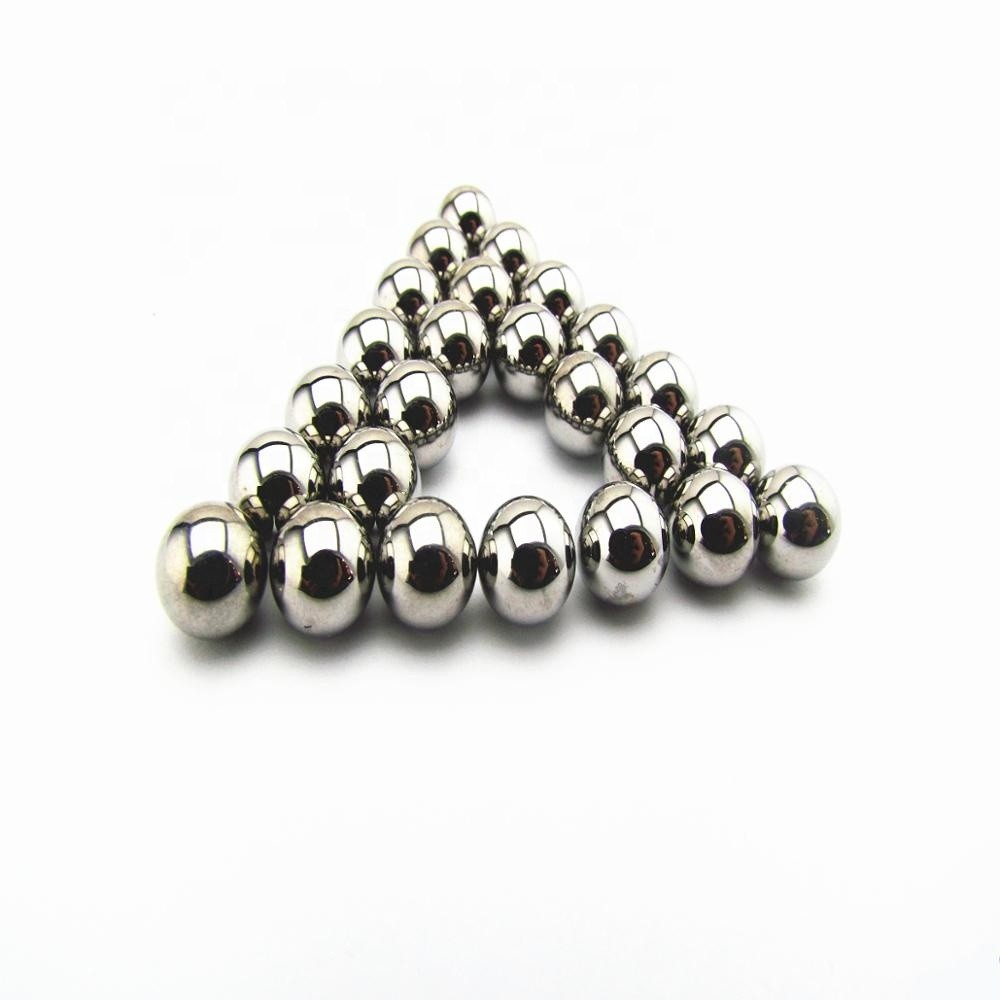

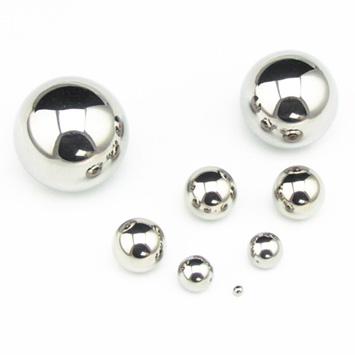

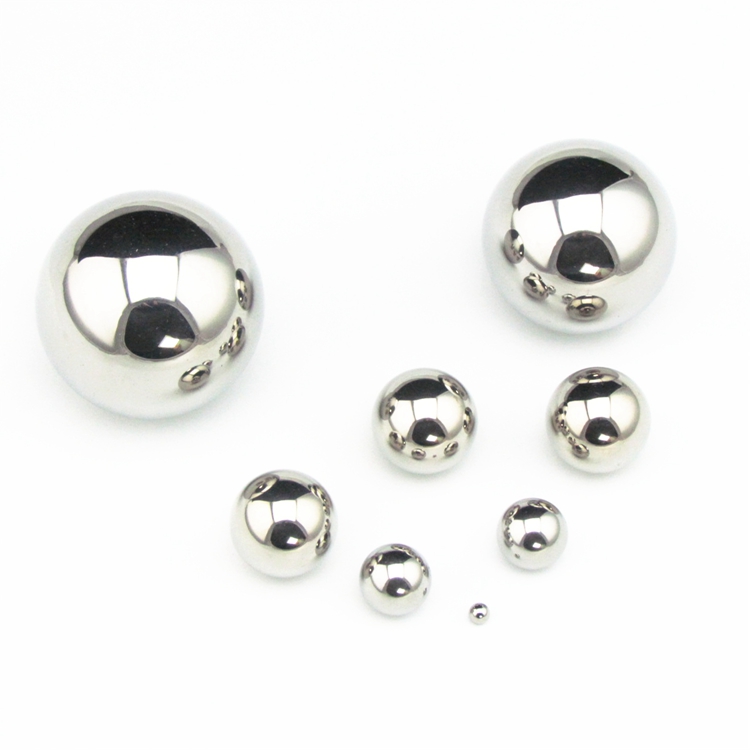

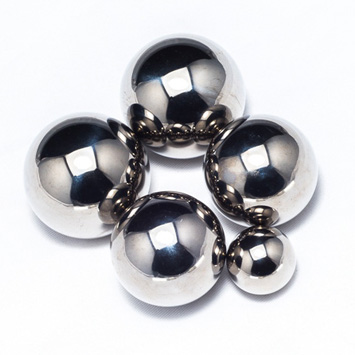

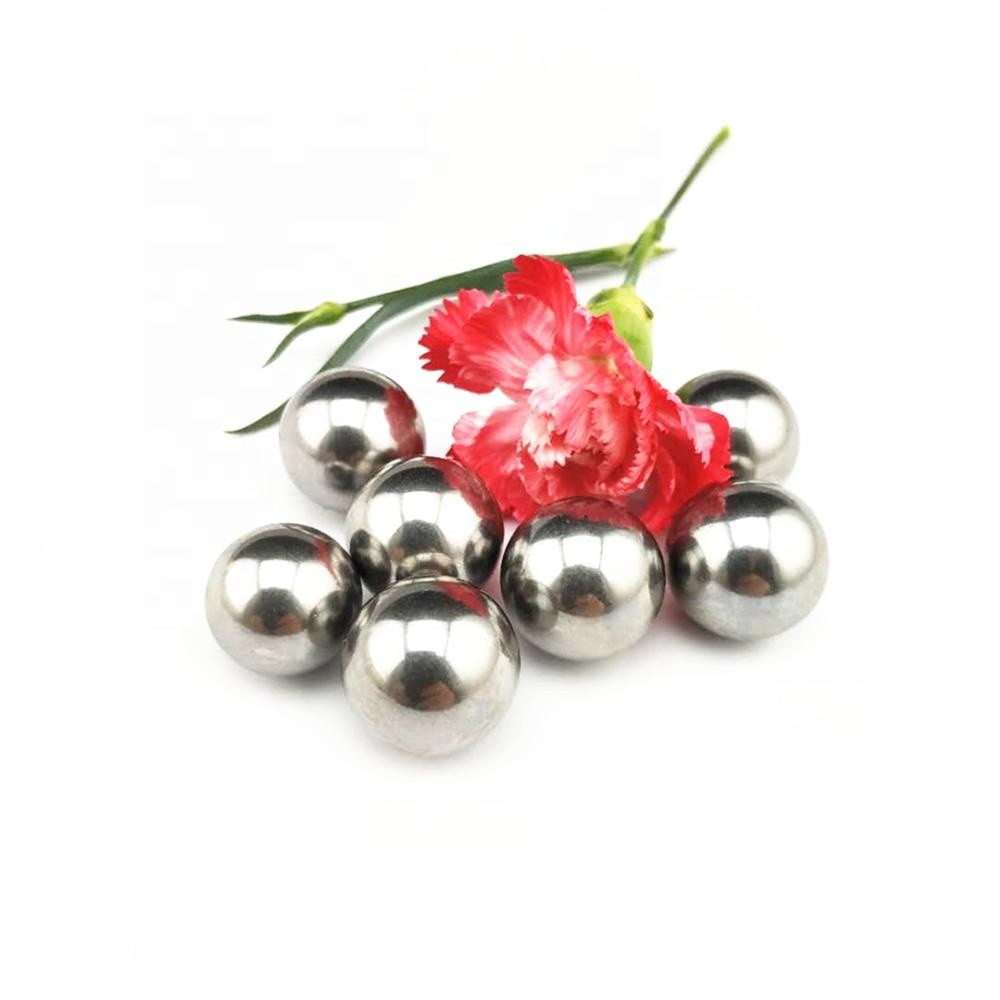

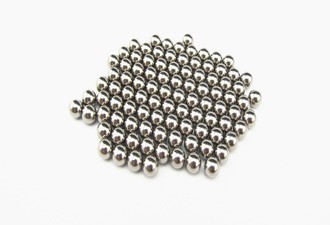

HUARI AISI304 Stainless Steel Ball
  • International Equivalent:
  • SUS304, 304, X5CrNi18-10, 08KH18H10, 0Cr18Ni9, steel balls, stainless steel ball
  •  To Share:
  • inquiry
    • HUARI AISI304 Stainless Steel Ball
    • HUARI AISI304 Stainless Steel Ball
    • HUARI AISI304 Stainless Steel Ball
    • HUARI AISI304 Stainless Steel Ball
    • HUARI AISI304 Stainless Steel Ball
    • HUARI AISI304 Stainless Steel Ball
Product information:

Changzhou Huari Steel Ball Co., Ltd is an ISO9001: 2015 and IATF16949: 2016 certified professional manufacturer of steel balls with experience of more than 30 years. We owns more than 500 sets advanced production equipment and more than 100 sets of testing devices to ensure the quality of the steel balls.

Custom service to meet our customers' needs are our core strength.

Sizes & Material

The factory produces ball sizes from 0.5mm to 250mm.

Stainless steel balls: AISI304, 304L, 316, 316L(G100-G1000),AISI420, 420C, 440, 440C(G10-G1000) .

AISI304/304L G40 5mm Stainless Steel Ball

1 (2).jpg

Product Description

ChinaJapanU.S.GermanyHardness
OCr18Ni9SUS304AISI3041.4301HRC 25-39
00Cr19Ni10SUS304LAISI304L1.4307HRC 25-39
0Cr17Ni12Mo2SUS316AISI3161.4401HRC 25-39
0Cr19Ni12Mo2SUS316LAISI316L1.4404HRC 25-39
3Cr13420J2AISI4201.4028HRC 48-58
4Cr13-AISI420C1.3541, 1.4034HRC52-56
9Cr18-AISI440
HRC57-61
9Cr18MoSUS440CAISI440C1.4125HRC58-64

MaterialCHEMICAL COMPOSITION %
CSiMnPSNiCrMoTi
AISI304≤0.08≤1.00≤2.00≤0.045≤0.038.0-11.018-20

AISI304L≤0.03≤1.0≤2.00≤0.045≤0.039.0-12.018-20

AISI316≤0.08≤1.00≤2.00≤0.035≤0.0310.0-1416.0-18.52.0-3.0
AISI316L≤0.030≤1.00≤2.00≤0.045≤0.0310.0-1416.0-182.0-3.0
AISI420(3Cr13)0.26-0.35≤1.0≤1.0≤0.04≤0.035≤≤0.60%12.0-14.0

AISI420C(4Cr13)0.36-0.45≤0.60≤0.8≤0.035≤0.03≤0.612.0-14.0

AISI440 (9Cr18)0.9-1≤0.8≤0.8≤0.035≤0.80≤0.6017.0-19.0≤0.75
AISI440C (9Cr18Mo)0.9-1≤0.8≤0.8≤0.035≤0.03≤0.6016.0-18.0≤0.75

Grade: G10 to G1000
Gradeball diametersphericalsurfacelot diameternomainal ball
variationdeviationroughnessvariationdeviation tolerance
VdwsSphRaVdwlTdn
not over
μm
100.250.250.020.5*
160.40.40.0250.8*
200.50.50.0321*
240.60.60.041.2*
280.70.70.051.4*
40110.062*
601.51.50.083*
1002.52.50.15±12.5
200550.1510±25
50012.512.5*25±50
10002525*50±125

Application of stainless steel balls.
AISI304, 304L, 316, 316L: strong anti-rust performance, can be in direct contact with neutral liquids. Special bearings, water pumps, valves, aerosols, dispensers, food machinery, medical, cosmetics and other fields.
AISI420, 420C, 440, 440C: precision bearings, auto parts, bicycles, mixers, slide rails, conveyor belts, skateboards, casters, valves, etc.

1 (3).jpg1 (4).jpg1 (5).jpg1 (6).jpg

More New Products And Quotes
>Click Here To Contact< To Get
Company Information


Process Flow

1 (9).jpg

Applications

Bearing Drawer Slide Household Appliances

Sprayer Transportation Medical Equipment

1 (10).jpg

Certifications


Packaging & Shipping

.jpg

More Products

6..jpg .jpg.jpg

FAQ


1.Q: Can you provide free sample?
Yes, we can offer you free sample when we have them in stock and you just need to pay the shipping fee.


2.Q: What's the terms of payment?
T/T, Trade Assurance order on Alibaba, Western Union or Cash.


3.Q: What the certification do you have?
ISO 9001,IATF 16949,ROHS,SGS,BV.


4.Q: What is the lead time?
Balls in stock could be delivered within 3-5 days once confirmed the order.

For mass order or customized products, it takes about 20-30 days.


5.Q: What's your advantage? Why we choose you?

1) More than 30 years balls manufacture experience.
2) Great production capacity Sustainable Supply. According to customer requirements. We support the customized products including package.
3) Large stock and wide size range.

Welcome customers designs, we supply OEM & ODM service
