Carbon Steel Ball

Bicycle steel ball
  • International Equivalent:
  • AISI 1010  S10C, DC01, 1.0330, C10C, 1.0214
  •  To Share:
  • inquiry
    • Bicycle steel ball
Product information:
The bicycle steel ball used in bicycle always has two kinds of material: chrome steel and carbon steel.

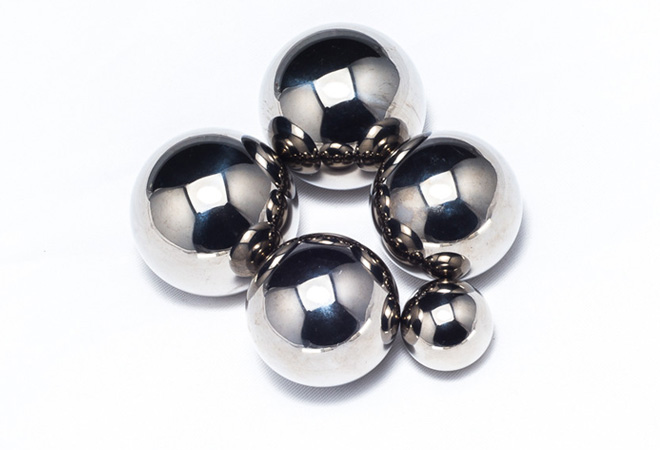

Bicycle steel ball
1. MaterialAISI1010/ AISI1015/ C15/ 1.0413/ JIS SWRM 12/ EN32 ASTM A/29
2. Size Range1mm-180mm
3. GradeG40-1000
4. Hardness60 min. HRC (Surface-hardend)
5. Characteristic(a)Casehardened surface balls and low hardness core
(b)superficial hardness
(c)Low resistance to corrosive attack
6. MagneticYes
7. ApplicationLow quality bearing, oiler, roller, sliding block…
8. Chemical composition

C%Si% Mn%Cr% Ni%Mo% P% S% Al% Cu%
min.0.12---0.30 ---------------------
max.0.170.30 0.60 0.20 0.250.050.0350.0350.010.30
9.PackingStandard: 10kg or 20kg per carton,1 ton per pallet or as customer required
10.Conditioning dry or oiled
11.Delivery timeStock within a short time or 35 days.
CHANGZHOU HUARI STEEL BALL CO., LTD.
Standard packing:
